GB/T24186 NM550 Wear-resistant steel plate wear resistant steel plate

NM550 is an average hardness of wear-resistant steel 550HBW and is used in high wear applications. GB/T24186 NM550 steel is intended for the use of high manganese steel or Brinell hardness of 500 users and manufacturers of wear resistant steel.

GB/T24186 NM550 Wear-resistant steel plate Hot Products

GB/T24186 NM550 Wear-resistant steel plate Steel Products

 120    1 2 3 4 5 6 7 8 9 10 next page last page
Get to know more about GB/T24186 NM550 Wear-resistant steel plate, please contact us. E-mail: bbnjoy@bebonchina.com

GB/T24186 NM550 Wear-resistant steel plate Specification

GB/T24186 Nm550 High Strength Abrasion Resistant Steel Plate,nm550.We are producing EN Hardox 550 Wear Resistant Plates.

GB/T24186 NM550 steel Application: Wear resistant steel plate has high wear resistance and good impact resistance, capable of cutting, bending, welding, can take welding plug welding, bolt connection and other structures are connected with time in the maintenance process, convenient, widely used in metallurgy, coal...

GB/T24186 NM550 steel Standard: WEAR RESISTANCE STEEL PALTE
Grade : NM360, NM400, NM500, NM550,
WNM360, WNM400, WNM450, WNM500
Thickness : 8mm-150mm
Width : 1000mm-4000mm
Length : 1000mm-20000mm
MOQ: 1 PC
Product type : Steel plate
Delivery time : Promptly ( Stock) or 10-40 days (Production)
Payment Terms: L/C, T/T, etc
Stock : Available
MTC: Available
Delivery condition: Q+T

GB/T24186 Nm550 Chemical Composition (%) of NM Wear Resistant Steel
Steel Grade C Si Mn P S Cr Mo B N H Ceq
NM360/NM400 ≤0.20 ≤0.40 ≤1.50 ≤0.012 ≤0.005 ≤0.35 ≤0.30 ≤0.002 ≤0.005 ≤0.00025 ≤0.53
NM450 ≤0.22 ≤0.60 ≤1.50 ≤0.012 ≤0.005 ≤0.80 ≤0.30 ≤0.002 ≤0.005 ≤0.00025 ≤0.62
NM500 ≤0.30 ≤0.60 ≤1.00 ≤0.012 ≤0.002 ≤1.00 ≤0.30 ≤0.002 ≤0.005 ≤0.0002 ≤0.65
NM550 ≤0.35 ≤0.40 ≤1.20 ≤0.010 ≤0.002 ≤1.00 ≤0.30 ≤0.002 ≤0.0045 ≤0.0002 ≤0.72

GB/T24186 Nm550 Mechanical Properties of NM Wear Resistant Steel

Steel Grade Yield Strength /MPa Tensile Strength /MPa Elongation A50 /% Hardess (Brinell) HBW10/3000 Impact/J (-20℃)
NM360 ≥900 ≥1050 ≥12 320-390 ≥21
NM400 ≥950 ≥1200 ≥12 380-430 ≥21
NM450 ≥1050 ≥1250 ≥7 420-480 ≥21
NM500 ≥1100 ≥1350 ≥6 ≥470 ≥17
NM550 - - - ≥530 -

Hot Steel Products+ See More

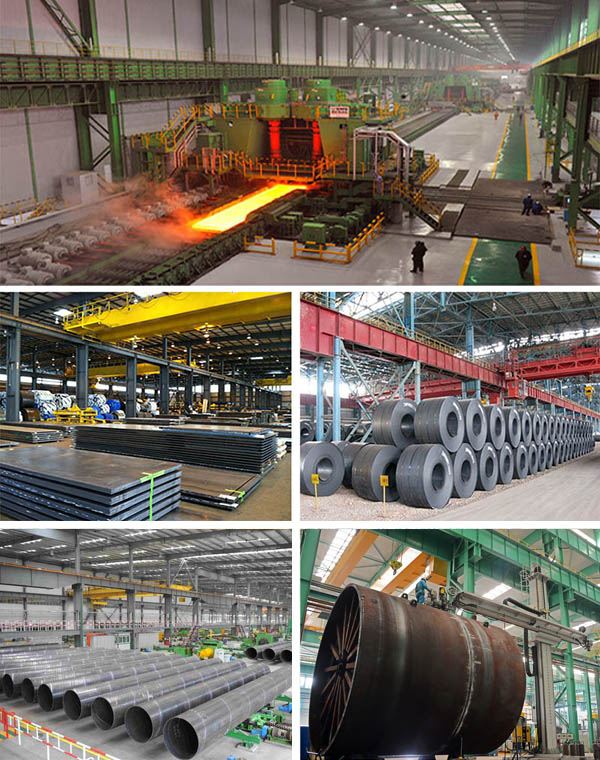

Our Factory & Workshopbbnjoy@bebonchina.com

wear resistant steel

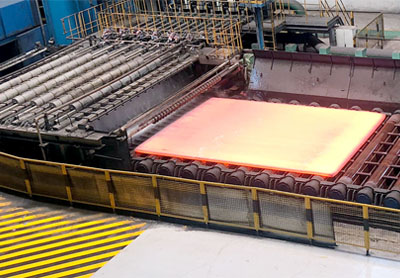

2500mm Steel Plates Production Line

wear resistant stee

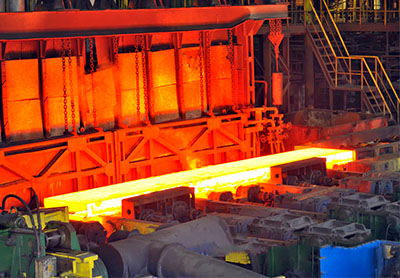

3500mm Steel Plates Production Line

wear resistant stee

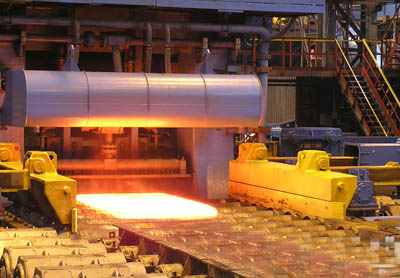

4500mm Steel Plates Production Line

wear resistant stee

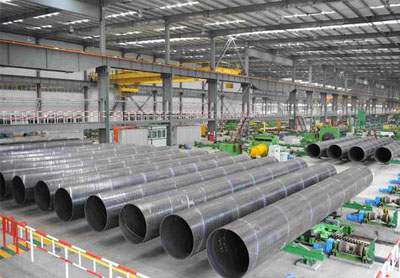

Spiral Welded Pipe Production Line

wear resistant stee

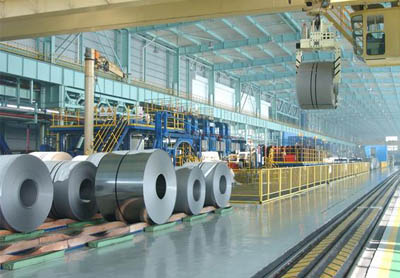

1700mm Hot Rolled Coil Production Line

wear resistant stee

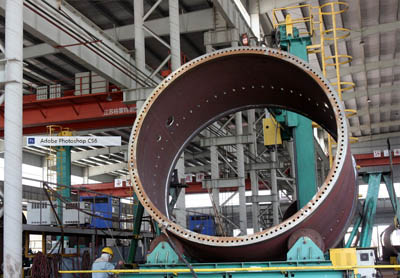

Deep Processing Center
