HARDOX 500 steel platechemical composition and property

HARDOX 500 steel platechemical composition and property

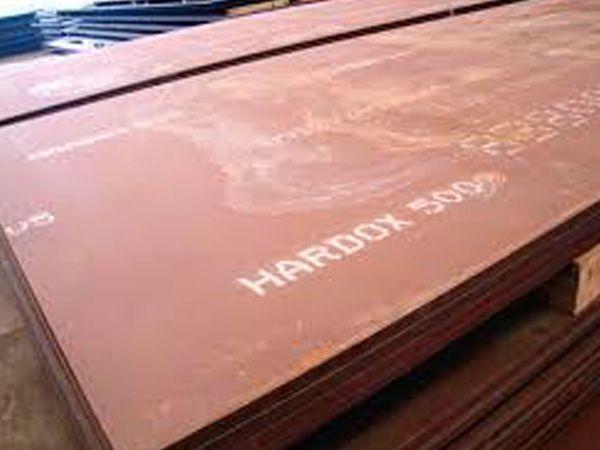

These HARDOX 500 steel plate is an abrasion resistant plate with a hardness of 500 HBW, intended for applications where demands are imposed on abrasion resistance in combination with good cold bending properties. These are available in various specification & thickness as per the requirements of clients. HARDOX 500 steel plate is easily available at economical price range in the market.

HARDOX 500 steel plate chemical composition


Grade

Thickness

C

Si

Mn

P

S

Cr

Ni

Mo

B

CEV

CET

HARDOX 500

4-13mm

0.27

0.7

1.6

0.025

0.01

1

0.25

0.25

0.004

0.49

0.34

13-32mm

0.29

0.7

1.6

0.025

0.01

1

0.5

0.3

0.004

0.62

0.41

32-40mm

0.29

0.7

1.6

0.025

0.01

1

1

0.6

0.004

0.64

0.43

40-80mm

0.3

0.7

1.6

0.025

0.01

1.5

15.

0.6

0.004

0.74

-

HARDOX 500 steel plate mechanical properties


Grade

Mechanical property

Charpy V impact test

HARDOX 500

Thickness

HBW Mpa

Elongation

Degree

Longitudinal

4-32mm

470-530

Min %

-40

40 J

32-80mm

450-540

10

HARDOX 500 steel plate is widely used in dump truck bodies, conveyors, chutes, loading buckets & bulldozers, crushers, mining and recycling equipment, lifting and qgricultural equipment manufacturing.
HARDOX 500 steel plate is the widely used of the wear resistant grades. We make all the sizes and thickness of HARDOX 500 steel plate as per the client's requirements.
